转发消息

IMKit 默认没有实现对单条、多条消息的转发以及合并转发，下面提供了可以实现单条或多条消息的转发的代码示例进行参考。

局限​

  • 并非所有消息类型均支持合并转发。
    • 支持的消息类型：文本、图片、图文、GIF、动态表情（RC:StkMsg）、名片、位置、小视频、文件、普通语音、高清语音、音视频通话（RC:VCSummary）。
    • 不支持的情况：未在支持列表中的消息类型，例如引用消息，以及未发送成功的消息等特殊情况不支持转发。自定义消息均不支持合并转发。
  • 合并转发支持合并不能超过 100 条消息。

单条转发​

可以增加消息气泡的长按事件来实现转发。在 onClick 中发消息使用 示例代码 的 sendForwardMessage 方法。

TypeScript
let msgForwardLongClickAction :ItemLongClickAction<Message> = {
  obtainTitle: (context: Context, data: Message): string | Resource => {
    return "转发消息"
  },
  onClick: (context: Context, data: Message): void => {
    // 转发消息
  },
  onFilter: (data: Message): boolean => {
    // 是否显示该长按事件？true 显示；false 不显示
    // 开发者可以根据 Message 对象的会话类型或者消息类型决定是否显示
    return true;
  },
  // 自定义的消息长按事件 Id，相同的 Id 的长按事件只会增加一次
  actionId: 'CustomMessageActionId'
}
RongIM.getInstance().conversationService().addMessageItemLongClickAction(msgForwardLongClickAction);

合并转发(1.4.3 支持)​

SDK 会将选中的消息合并为一条合并转发消息，包含消息内容对象 CombineMessage（类型标识：RC:CombineMsg）。合并转发的消息默认折叠显示，可点击展开。

预览页面事件监听​

您可以通过 addCombineMessageEventListener 方法自定义合并转发预览界面的事件监听：

示例代码​

TypeScript
export interface CombineMessageEventListener {
  /**
   * 合并转发消息预览页面的位置消息点击事件回调
   * @param latitude 纬度, double 类型
   * @param longitude 经度, double 类型
   * @param locationName 地理位置的名称
   */
  onLocationMessageClick?: (latitude: number, longitude: number, locationName: string) => void;
}


let combineMessageEventListener: CombineMessageEventListener = {
  onLocationMessageClick: (latitude: number, longitude: number, locationName: string) => {
    // 地图消息跳转地图页面查看位置
  }
}
// 添加事件监听
RongIM.getInstance().messageService().addCombineMessageEventListener(combineMessageEventListener)
// 移除事件监听
RongIM.getInstance().messageService().removeCombineMessageEventListener(combineMessageEventListener)

预览页面样式设置​

您可以通过 ConversationConfig 的 setCombineHtmlStyle 方法配置预览页面的样式：

TypeScript
let config = RongIM.getInstance().conversationService().getConversationConfig()
config.setCombineHtmlStyle("样式style")
RongIM.getInstance().conversationService().setConversationConfig(config)

合并转发兼容不支持的类型消息​

构建合并转发消息​

构建合并转发接口新增 function 类型参数 unsupportedMessageHandler?: (message:Message) => Promise<string>。仅当SDK解析到不支持的类型消息时，会回调此 function，message 是不支持的消息。 这样由开发者来处理合并转发不支持的类型消息，返回消息对应 HTML body 内容，SDK 会把返回的内容插入到合并转发 HTML 中。

TypeScript
  /**
   * 构建合并转发消息
   *
   * @param forwardMessages 用来构建合并转发消息的消息数组
   * @param unsupportedMessageHandler 用于开发者处理合并转发不支持类型的消息转换为 HTML 内容的逻辑。
   * @returns 返回 CombineMessage，如果返回 undefined 则代表构建失败。
   */
  obtainCombineMessage(forwardMessages: Message[], unsupportedMessageHandler?: (message:Message) => Promise<string>): Promise<IAsyncResult<CombineMessage>>;

参数说明​

参数名类型说明
forwardMessagesMessage[]用来构建合并转发消息的消息数组
unsupportedMessageHandler(message:Message) => Promise<string>用于开发者处理合并转发不支持类型的消息转换为 HTML 内容的逻辑。
1. 仅当 SDK 转换 forwardMessages 遇到不支持的消息类型时回调此 function，message 是不支持的消息。如开发者准备渲染该消息，则需要返回 body 内容。
2. SDK 不会校验 function 返回的 body 内容，如内容异常会导致合并转发页面加载失败，需开发者保证内容有效。如返回空字符串则不会处理。

拦截Html页面的JS事件​

接口说明

TypeScript
export interface CombineMessageEventListener {
  // ...省略无关代码

/**
 * 合并转发WebView的JS回调原生的拦截器。此拦截接口优先级高于 onLocationMessageClick。
 *
 * @params jsJson 合并转发Html通过JS透传过来的Json数据
 * @return false 代表SDK继续执行JS事件，true 代表SDK不需再执行JS事件。
 * @since 1.7.0
 */
onJSCallNativeInterceptor?: (jsJson: string) => Promise<boolean>;
}

SDK 返回的 jsJson 数据示例

TypeScript
文件
    type = "RC:FileMsg"
    fileName = "文件.pdf"
    fileSize = "123456"
    fileType = "pdf"
    fileUrl = "文件地址"
地图
    type = "RC:LBSMsg"
    latitude = "纬度"
    locationName = "地理位置"
    longitude = "经度"
合并转发
    type = "RC:CombineMsg"
    fileUrl = "文件下载地址"
    title = "标题"
手机号
    type = "phone"
    phoneNum = "13888888888"
超链接
    type = "link"
    link = "超链接"
    type = "RC:ImgMsg"
    fileUrl = "图片地址"
    imgUrl = "缩略图base64"
视频
    type = "RC:SightMsg"
    duration = "5"
    fileUrl = "视频地址"
    imageBase64 = "缩略图base64"
Gif
    type = "RC:GIFMsg"
    fileUrl = "Gif地址"

自定义html内容说明​

定义 CUSTOM:MSG 类型消息对应的 html body 内容，支持使用自定义样式，支持点击事件。

  • 自定义样式可以通过 setCombineHtmlStyle 来设置。
  • 必须设置 onClick='show()' 来保证 SDK 可以接收 JS 点击事件，例：onClick='show({extra:"自定义透传参数",title:"标题",type:"CUSTOM:MSG"})'。
  • 设置合并转发事件接口，可以拦截JS点击事件，参照 CombineMessageEventListener#onJSCallNativeInterceptor。
  • 内置标签如：{%portrait%}、{%showUser%}、{%userName%}、{%sendTime%}，与消息类型无关，由 SDK 进行处理。

代码示例

html
<!-- 1，点击事件：必须统一使用show()来进行鸿蒙原生JS回调，内容是Json格式 -->
<div class='rong-message {%showUser%}' onClick='show({extra:"自定义透传参数",title:"标题",type:"CUSTOM:MSG"})'>
        <div class='rong-message-user rong-none-user-img'><img src='{%portrait%}' class='rong-message-user-bg rong-message-user-portrait' /></div>
        <div class='rongcloud-message-body'>
                <!-- 2，修改name修改为消息的objectName -->
                <div name='CUSTOM:MSG'>
                        <div class='rongcloud-message-user-name'><span name='userName'>{%userName%}</span><span class='rong-message-time' name='sendTime'>{%sendTime%}</span></div>
                        <!-- 3，摆放 html body 标签 -->
                        <!-- 这里rongcloud-message-text 是内置的样式 -->
                        <div class='rongcloud-message-text'>
                                <pre class='rongcloud-message-entry'>{%customMsgField1_SDKStyle%}</pre>
                        </div>
                        <!-- 这里 custom-msg-style1、custom-msg-style2 是自定义的样式 -->
                        <div class='custom-msg-style1'>
                                <pre class='rongcloud-message-entry'>{%customMsgField2_CustomStyle%}</pre>
                        </div>
                        <div class='custom-msg-style2'>
                                <pre class='rongcloud-message-entry'>{%customMsgField3_CustomStyle%}</pre>
                        </div>
                </div>
        </div>
</div>

完整示例​

  1. 定义 CUSTOM:MSG 类型消息的 HTML 内容
TypeScript
let customMsgHtmlData:string =
  "<div class='rong-message {%showUser%}' onClick='show({extra:\"自定义透传参数\",title:\"标题\",type:\"CUSTOM:MSG\"})'>\n" +
  "        <div class='rong-message-user rong-none-user-img'><img src='{%portrait%}' class='rong-message-user-bg rong-message-user-portrait' /></div>\n" +
  "        <div class='rongcloud-message-body'>\n" +
  "                <!-- 2，修改name修改为消息的objectName -->\n" +
  "                <div name='CUSTOM:MSG'>\n" +
  "                        <div class='rongcloud-message-user-name'><span name='userName'>{%userName%}</span><span class='rong-message-time' name='sendTime'>{%sendTime%}</span></div>\n" +
  "                        <!-- 3，摆放 html body 标签 -->\n" +
  "                        <!-- 这里rongcloud-message-text 是内置的样式 -->\n" +
  "                        <div class='rongcloud-message-text'>\n" +
  "                                <pre class='rongcloud-message-entry'>{%customMsgField1_SDKStyle%}</pre>\n" +
  "                        </div>\n" +
  "                        <!-- 这里 custom-msg-style1、custom-msg-style2 是自定义的样式 -->\n" +
  "                        <div class='custom-msg-style1'>\n" +
  "                                <pre class='rongcloud-message-entry'>{%customMsgField2_CustomStyle%}</pre>\n" +
  "                        </div>\n" +
  "                        <div class='custom-msg-style2'>\n" +
  "                                <pre class='rongcloud-message-entry'>{%customMsgField3_CustomStyle%}</pre>\n" +
  "                        </div>\n" +
  "                </div>\n" +
  "        </div>\n" +
  "</div>";
  1. 定义 HTML 内容中用到的样式
TypeScript
import { RongIM } from "@rongcloud/imkit"

let config = RongIM.getInstance().conversationService().getConversationConfig()
let style: string = ".custom-msg-style1 {\n" +
  "      font-size: 14px;\n" +
  "      color: #FF0000;\n" +
  "      margin: 0;\n" +
  "      padding: 0;\n" +
  "    }\n" +
  "    .custom-msg-style2 {\n" +
  "      font-size: 16px;\n" +
  "      color: #CC0066;\n" +
  "      margin: 0;\n" +
  "      padding: 0;\n" +
  "    }"
config.setCombineHtmlStyle(style)
RongIM.getInstance().conversationService().setConversationConfig(config)
  1. 设置合并转发事件接口，实现拦截JS事件方法
TypeScript
import { CombineMessageEventListener, RongIM } from "@rongcloud/imkit";

let combineMessageEventListener: CombineMessageEventListener = {
  onJSCallNativeInterceptor: (jsData: string): Promise<boolean> => {
    return new Promise((resolve) => {
      let jsonObject: object = JSON.parse(jsData);
      // 开发者根据 jsonObject 里的值来判断开发者是否需要处理，以及是否需要SDK处理。
      if (jsonObject["CUSTOM:MSG"]) {
        // 开发者处理跳转逻辑，则返回true，由SDK处理跳转逻辑则返回false。
        resolve(true);
      } else {
        resolve(false);
      }
    });
  }
}
RongIM.getInstance().messageService().addCombineMessageEventListener(combineMessageEventListener)
  1. 构建转发消息，设置转换Html的function来返回Html内容
TypeScript
import { Message, RongIM } from "@rongcloud/imkit"

// 参照上述 customMsgHtmlData 示例
let customMsgHtmlData: string = ""
// 待转发消息
let forwardMessage: Message[] = []
let result = await RongIM.getInstance().messageService().obtainCombineMessage(forwardMessage,
  (message: Message) => {
    return new Promise<string>((resolve) => {
      if (message.objectName === "CUSTOM:MSG") {
        // 示例replaceContent是从Message中取到的字段，准备替换到html模版中。
        let field1 = "SDK样式+自定义消息字段1"
        let field2 = "自定义样式+自定义消息字段2"
        let field3 = "自定义样式+自定义消息字段3"
        // 如果有多个内容需要替换，则逐个replace替换.
        let html = customMsgHtmlData.replaceAll("{%customMsgField1_SDKStyle%}", field1)
                                    .replaceAll("{%customMsgField2_CustomStyle%}", field2)
                                    .replaceAll("{%customMsgField3_CustomStyle%}", field3);
        resolve(html)
      }else {
        // 不需要解析的类型，返回空字符串
        resolve("")
      }
    })
  }
)

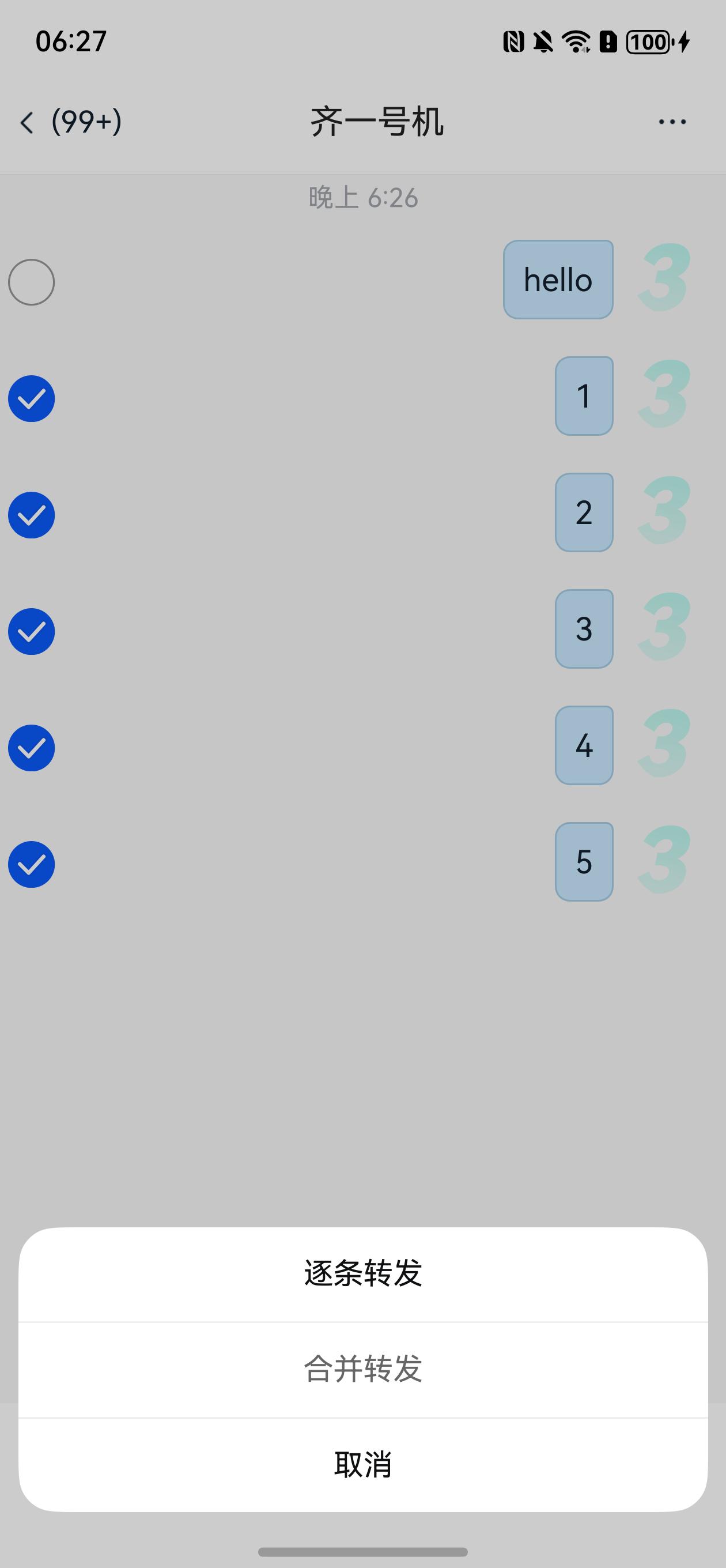

添加转发按钮​

IMKit 提供了 addMessageMoreAction 方法，可以增加长按消息点击“更多”之后，展示聊天页面底部的按钮 示例代码。 需要在 routeSelectPage 中编写跳转到 App 侧开发选人页面。

逐条转发：多条转发消息使用 示例代码 的 sendForwardMessages 方法。

合并转发：合并转发消息使用 示例代码 的 sendForwardCombineMessage 方法。

TypeScript
  forwardDialog: CustomDialogController | undefined
  forwardMessageArray: Message[] = []

  async aboutToAppear(): Promise<void> {
    this.addMessageMoreItems()
  }

  private addMessageMoreItems() {
    this.forwardDialog = new CustomDialogController({
      builder: CustomListDialog({
        itemTextAlign: TextAlign.Center,
        viewAllWidth: '95%',
        list: [$r("app.string.rc_stepwise_forwarding"), $r("app.string.rc_combine_forwarding"), $r("app.string.rc_cancel")],
        onItemClick: (index: number) => {
          // 关闭弹窗
          this.forwardDialog?.close();
          if (index === 2) {
            return
          }

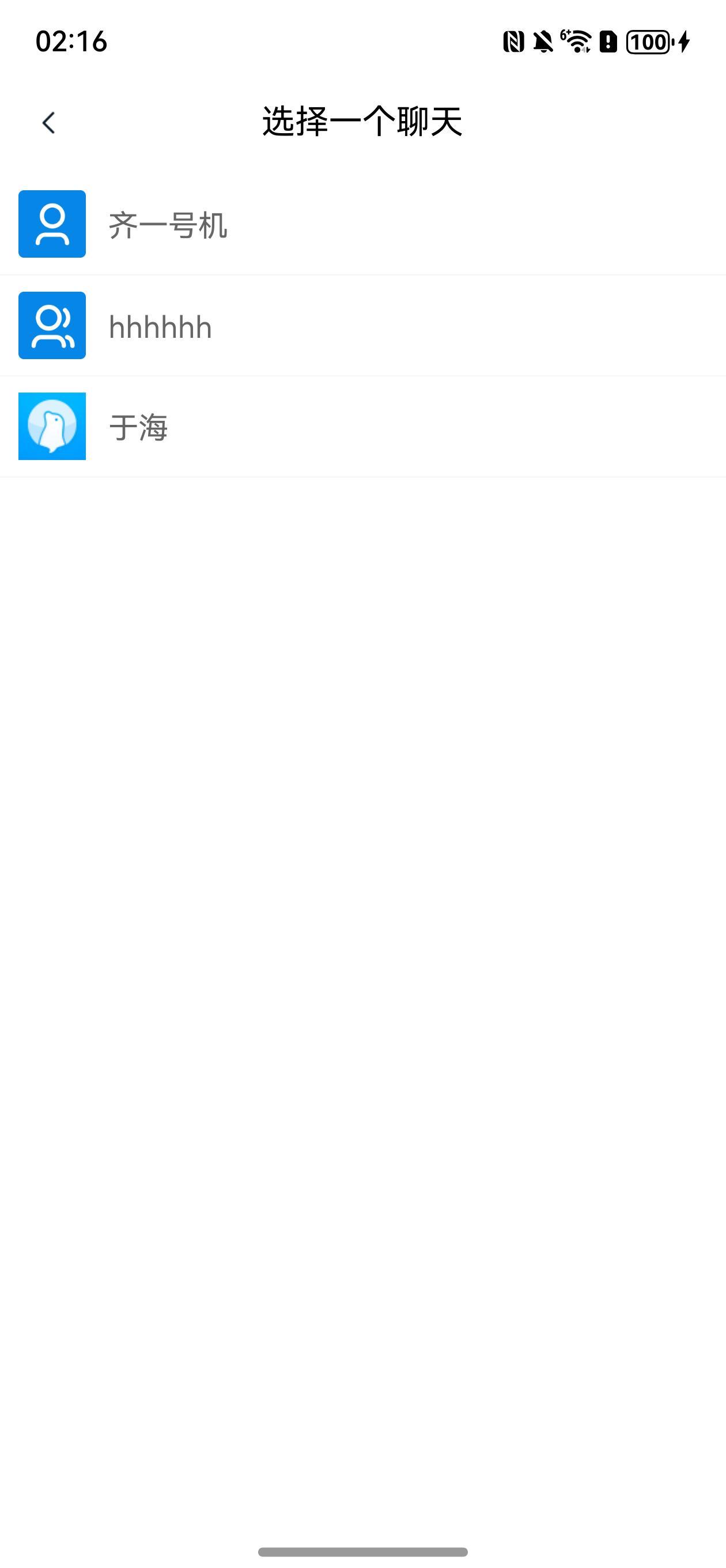

          // 跳转到 App 侧开发选人页面
          let forWardType = index === 0 ? ForWardType.Step : ForWardType.Combine
          let params: ForWardMessageParam = { messages: this.forwardMessageArray, forWardType: forWardType };
          this.routeSelectPage(params)
        }
      }),
      customStyle: true,
      offset: { dx: 0, dy: -30 },
      alignment: DialogAlignment.Bottom
    })
    RongIM.getInstance().conversationService().addMessageMoreAction({
      actionId: 'message_more_forward',
      icon: $r("app.media.rc_message_more_forward"),
      onClick: (context: Context, messages: Message[]): boolean => {
        this.forwardMessageArray = messages
        this.forwardDialog?.open()
        return true
      },
      onFilter: (messages: Message[]): boolean => {
        return true;
      },
      location: 100
    })
  }

  private routeSelectPage(params: ForWardMessageParam) {
    // 跳转逻辑
  }

export interface ForWardMessageParam {
  messages: Message[],
  forWardType?: ForWardType
}

export enum ForWardType {
  /**
   * 逐条转发
   */
  Step = 1,
  /**
   * 合并转发
   */
  Combine = 2,
}

转发消息示例代码​

TypeScript
import {
  ConversationIdentifier,
  ConversationType,
  FileMessage,
  FileMessageObjectName,
  GIFMessage,
  GIFMessageObjectName,
  ImageMessage,
  ImageMessageObjectName,
  HQVoiceMessageObjectName,
  Message,
  ObjectChecker,
  RongIM,
  TextMessage,
  SightMessage,
  TextMessageObjectName,
  SightMessageObjectName,
  LocationMessageObjectName,
  LocationMessage,
  HQVoiceMessage,
  RichContentMessageObjectName,
  RichContentMessage,
  ReferenceMessageObjectName,
  ReferenceMessage,
  MessageContent
} from '@rongcloud/imkit';

  // 转发多条消息
  private async sendForwardMessages(forwardMessage: Message[], conversation: Conversation) {
    for (let index = 0; index < forwardMessage.length; index++) {
      this.sendForwardMessage(forwardMessage[index], conversation);
      await new Promise<void>(resolve => setTimeout(resolve, 300));
    }
  }

  // 转发单条消息
  private async sendForwardMessage(forwardMessage: Message, conversation: Conversation): Promise<void> {
    return new Promise(async () => {
      let conversationIdentifier = ConversationIdentifier.createWithConversation(conversation)
      let msgContent = this.getMessageContent(forwardMessage.content, forwardMessage.objectName);
      if (!msgContent) {
        return
      }
      let msg = new Message(conversationIdentifier, msgContent);
      await RongIM.getInstance().messageService().sendMessage(msg)
    })
  }

  // 合并转发消息
  public async sendForwardCombineMessage(forwardMessage: Message[], conversation: Conversation): Promise<void> {
    return new Promise(async () => {
      let result = await RongIM.getInstance().messageService().obtainCombineMessage(forwardMessage)
      if (result.code !== EngineError.Success) {
        return
      }
      let combineMsg = result.data as CombineMessage
      let msg = new Message(ConversationIdentifier.createWithConversation(conversation), combineMsg)
      await RongIM.getInstance().messageService().sendMediaMessage(msg)
    });
  }

  private getMessageContent(messageContent: MessageContent, objName: string): MessageContent | undefined {
    if (objName === TextMessageObjectName) {
      let oldTextMsg = messageContent as TextMessage
      let textMsg = new TextMessage();
      textMsg.content = oldTextMsg.content;
      return textMsg
    } else if (objName === ImageMessageObjectName) {
      let imageMsg = messageContent as ImageMessage
      let imageMessage = new ImageMessage();
      imageMessage.isFull = true;
      imageMessage.name = imageMsg.name;
      imageMessage.remoteUrl = imageMsg.remoteUrl;
      imageMessage.thumbnailBase64 = imageMsg.thumbnailBase64;
      return imageMessage
    } else if (objName === FileMessageObjectName) {
      let fileMsg = messageContent as FileMessage;
      let fileMessage = new FileMessage();
      fileMessage.name = fileMsg.name;
      fileMessage.remoteUrl = fileMsg.remoteUrl;
      fileMessage.size = fileMsg.size;
      fileMessage.type = fileMsg.type;
      return fileMessage
    } else if (objName === GIFMessageObjectName) {
      let imageMsg = messageContent as GIFMessage
      let imageMessage = new GIFMessage();
      imageMessage.name = imageMsg.name;
      imageMessage.remoteUrl = imageMsg.remoteUrl;
      return imageMessage
    } else if (objName === SightMessageObjectName) {
      let sightMsg = messageContent as SightMessage
      let sightMessage = new SightMessage();
      sightMessage.base64 = sightMsg.base64;
      sightMessage.duration = sightMsg.duration;
      sightMessage.size = sightMsg.size;
      sightMessage.name = sightMsg.name;
      sightMessage.remoteUrl = sightMsg.remoteUrl;
      return sightMessage
    } else if (objName === RichContentMessageObjectName) {
      let richContentMsg = messageContent as RichContentMessage
      let richContentMessage = new RichContentMessage();
      richContentMessage.title = richContentMsg.title
      richContentMessage.content = richContentMsg.content
      richContentMessage.imgUrl = richContentMsg.imgUrl
      richContentMessage.url = richContentMsg.url
      return richContentMessage
    } else if (objName === LocationMessageObjectName) {
      let locationMsg = messageContent as LocationMessage
      let locationMessage = new LocationMessage();
      locationMessage.latitude = locationMsg.latitude;
      locationMessage.longitude = locationMsg.longitude;
      locationMessage.poi = locationMsg.poi;
      locationMessage.thumbnailBase64 = locationMsg.thumbnailBase64;
      locationMessage.type = locationMsg.type;
      return locationMessage
    } else if (objName === HQVoiceMessageObjectName) {
      let hqVoiceMsg = messageContent as HQVoiceMessage
      let hqVoiceMessage = new HQVoiceMessage();
      hqVoiceMessage.name = hqVoiceMsg.name;
      hqVoiceMessage.remoteUrl = hqVoiceMsg.remoteUrl;
      hqVoiceMessage.duration = hqVoiceMsg.duration;
      return hqVoiceMessage
    } else if (objName === CombineMessageObjectName) {
      let combineMsg = messageContent as CombineMessage
      let combineMessage = new CombineMessage();
      combineMessage.name = combineMsg.name;
      combineMessage.title = combineMsg.title;
      combineMessage.conversationType = combineMsg.conversationType;
      combineMessage.nameList = combineMsg.nameList
      combineMessage.summaryList = combineMsg.summaryList
      combineMessage.remoteUrl = combineMsg.remoteUrl
      return combineMessage
    }
    return undefined
  }
最后于 更新
